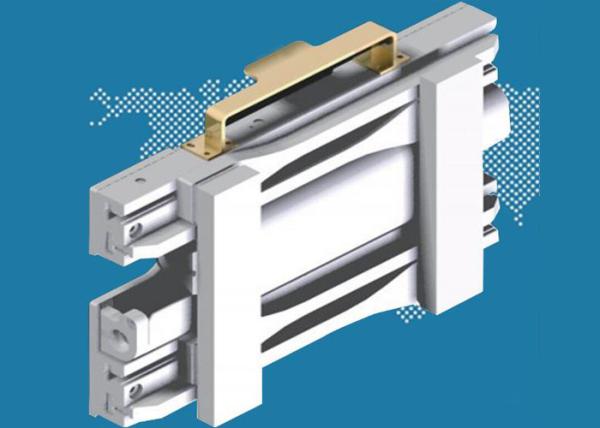

Rotating Clamp Forklift Attachments No Arm

Name: Rotating Clamp Forklift Attachments No Arm
Brand: Bonafe
Price: 1 USD

Brand Name : Bonafe

Place of Origin : China

MOQ : 1 Units

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Unit/Units per Year

Delivery Time : 5-8 work days

product category : Forklift Attachment No-Arm Clamps

Material : Steel

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shop

Opening Range : 465-1810mm

Weight : 536kg

Frame Width : 1015mm

Arm Pad Size : 125x625x45mm

Horizontal Center of Gravity : 142mm

Effective Thickness : 241mm

Contact Now

Forklift Attachment No-Arm Clamps Revolving

Product Description

CNR20D-004A Opening Range 410-1655mm, Arm Pad Size 127x565x40mm, Frame Width 940mm, Weight 454kg

CNR30D-005A Opening Range 465-1810mm, Arm Pad Size 125x625x45mm, Frame Width 1015mm, Weight 536kg

Parameter

Capacity@ Load Center (Kg@mm)	Model No.	Mounting Class	Opening Range (mm)	Arm Pad Size WxHxT (mm)	Frame Width A (mm)	Vertical Center of Gravity CGV(mm)	Weight (kg)	Effective Thickness ET(mm)	Horizontal Center of Gravity CGH(mm)
Revolving
1600@600	CNR20D-004A	II	410-1655	127x565x40	940	335	454	226	127
2300@600	CNR30D-005A	II	465-1810	125x625x45	1015	335	536	241	142
2300@600	CNR30D-005B	III	465-1810	125x65x45	1015	335	554	279	188

Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range refers to inside spacing of arm base of clamp arm.
4. We can design and manufacture various types of special clamp arm according to user’s condition requirements.

Other size available on request.

Hydraulic Flow & Pressure

Model	Min. Hydraulic Flow(L/min)	Rec. Hydraulic Flow(L/min)	Max. Hydraulic Flow(L/min)	Min. Hydraulic Pressure(Bar)	Max. Hydraulic Pressure(Bar)
Revolving
CNR20D	20	40	60	35	160
CNR30D	20	40	60	35	160

Rotator Specifications

Model	Rotator Speed	Rotator Torque
CNR20D	5.2r/min@57L/min	9000N.m@160Bar
CNR30D	5.2r/min@57L/min	9000N.m@160Bar

Applicable Industries
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shop

Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
