22G Tablets Paper rolls 2000kg 2200kg
Functions & Applications

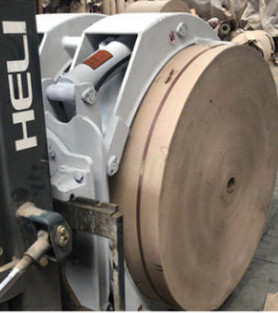

Accessories for forklift trucks are accessories for forklift trucks transporting various goods. The paper roller holder is one of them. They are mainly used for recording and handling basic cylindrical papers.
Features
* The design is very sensible, the structure is compact, the field of vision is excellent, the operation is comfortable and the efficiency of work is effectively improved.
* Hold the hydraulic pressure of the roller valve to ensure a reliable tension of the paper roller during long haul.
* bidirectional 360 degree continuous rotation, self-locking at every angle
Options
* Special pads

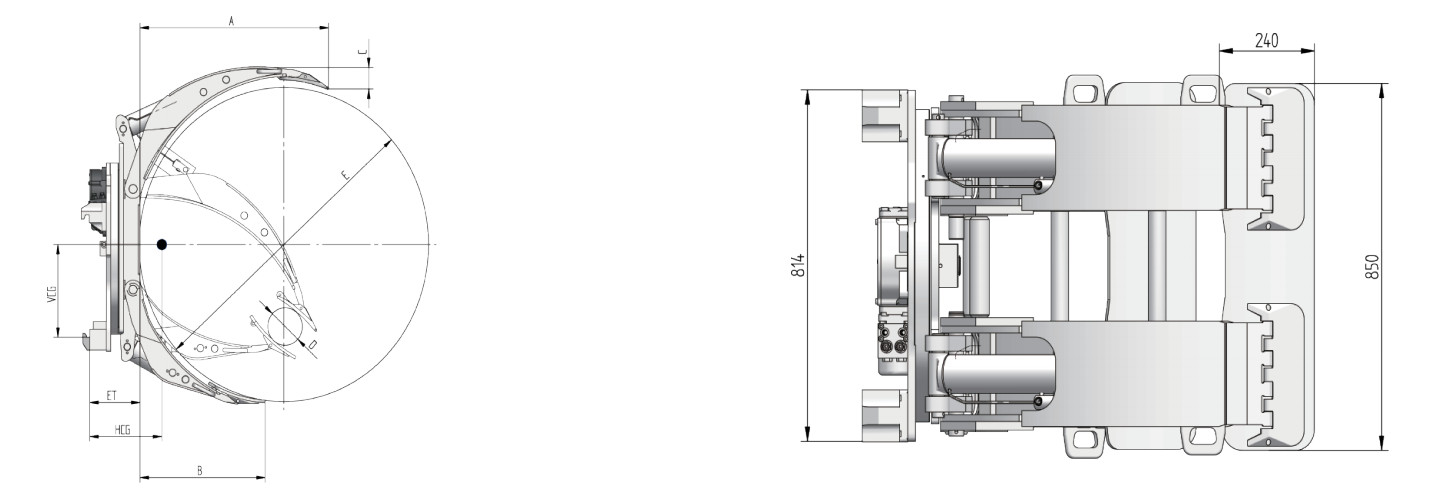

Parameter
Capacity
(kg) | Roll Range
(mm) | Model No. | Type | Mounting Class | Mounting Angle | Long Arm Length
A (mm) | Short Arm Length
B (mm) | Long Arm Thickness
C (mm) | Vertical Center
of Gravity
VCG | Weight
(kg) | Effective Thickness
ET (mm) | Horizontal Center of Gravity
CGH (mm) |
| 2200 | 350-1150 | RCF22G-001B | Fixed | III | 0° | 813 | 515 | 36 | 361 | 609 | 237 | 270 |
| 2200 | 440-1300 | RCF22G-003B | Fixed | III | 0° | 896 | 583 | 36 | 361 | 635 | 237 | 296 |
| 2200 | 440-1400 | RCF22G-005B | Fixed | III | 0° | 953 | 623 | 36 | 361 | 650 | 237 | 299 |
| 2000 | 490-1525 | RCF22G-007B | Fixed | III | 0° | 1013 | 685 | 36 | 361 | 665 | 237 | 328 |
| 2000 | 500-1600 | RCF22G-009B | Fixed | III | 0° | 1047 | 723 | 36 | 361 | 680 | 237 | 332 |
| 2200 | 200-1150 | RCF22P-002B | Adjustable | III | 0° | 813 | 515 | 36 | 361 | 614 | 237 | 270 |
| 2200 | 200-1300 | RCF22P-004B | Adjustable | III | 0° | 896 | 583 | 36 | 361 | 640 | 237 | 296 |
| 2200 | 200-1400 | RCF22P-006B | Adjustable | III | 0° | 953 | 623 | 36 | 361 | 655 | 237 | 299 |
| 2000 | 200-1525 | RCF22P-008B | Adjustable | III | 0° | 1013 | 685 | 36 | 361 | 672 | 237 | 328 |
| 2000 | 200-1600 | RCF22P-010B | Adjustable | III | 0° | 1047 | 723 | 36 | 361 | 690 | 237 | 332 |
Remark:.
1. Get the actual capacity of the stacker and accessories from the stacker manufacturer
2. If the stack operation is higher than 6800mm, use the "0" installation angle.
3. Provide non-standard rails where appropriate.
Applicable Industries
Households, construction, energy and mining, manufacturing plants
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
