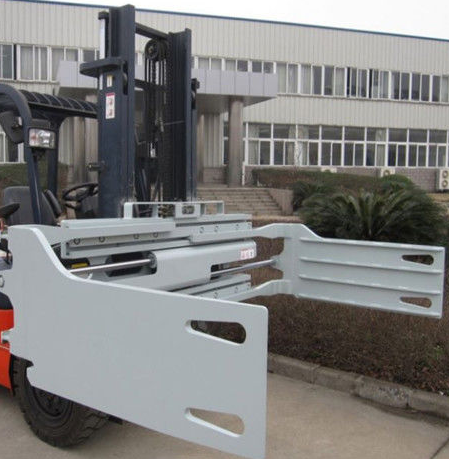

Material handling equipment Lifting gear forklift accessories Balls clamp
Can pull and push light goods pack with the help of sliding plate instead of pallet(eg.cardboard) safely and efficiently.Only use sliding plate to realize loading, stacking, and reuse cardboard (only for Sliding Plate Reatinable Model ) .It can greatly improve production efficiency, saving the cost . It can be widely used in electronics, food, light industry and other industries.
push pull attachment feature:
1. Reasonable integrated structure, wide horizon, flexible and easy to operate;
2. Loading and unloading goods can be done without pallets, and the application of low cost slip sheet meets the storage room of the pallets.
3. The durable and smooth alloy fork plate can avoid damage to the connection part of the sliding plate during operation.
4. Reasonable design of hydraulic elements make the hydraulic system get good protection and long life.
5. All materials are made of alloy with high strength.
Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Opening Range
O (mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
C (mm) | Arm
Thickness
D (mm) | Overall
Height
E (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1400@500 | BCS15D-001A | 420-1570 | 415 | 990 | 940 | 70 | 645 | 220 | 415 | 127 | 315 |
| 1400@500 | BCS15D-002A | 420-1570 | 415 | 915 | 940 | 70 | 645 | 220 | 405 | 127 | 307 |
| 2200@500 | BCS30D-011B | 490-2300 | 460 | 990 | 1600 | 75 | 730 | 255 | 710 | 150 | 240 |
| 2200@500 | BCS30D-012B | 490-2300 | 460 | 1195 | 1600 | 75 | 730 | 255 | 730 | 150 | 240 |
Remark
1. Obtain the actual capacity of forklift and accessories from the forklift manufacturer.
2. Two sets of additional oil circuits are required on the forklift.
3. The open arm range is the space between the two arm tips.
4. The arm thickness "d" is the actual required operating space.
5. Rotate the bale clamp optionally.
Applicable Industries
Manufacturers, clothing stores, building materials stores, machinery repair shops
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
