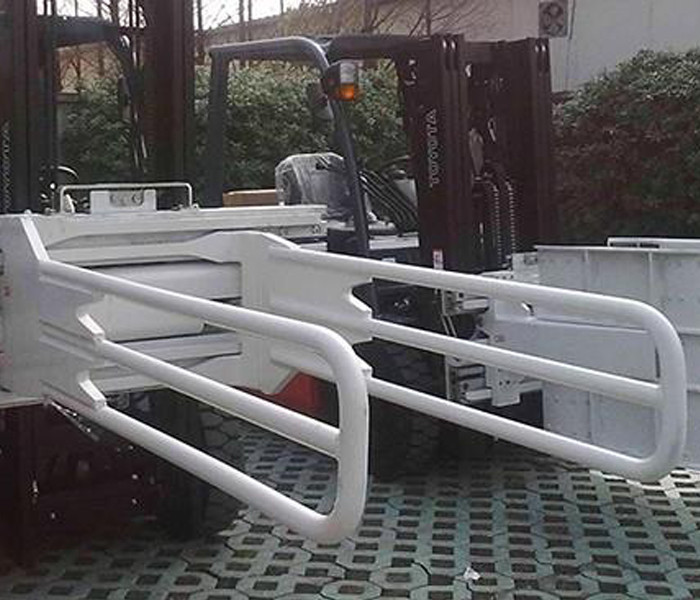

Custom Forklift Clamp Attachments Forklift Foam Rubber Clamps
Functions & Applications
Foam clamps can efficiently and safely handle and stack any type of cotton products including rubber, chemical industry and chemical fiber, etc.
The high-strength T-bar and aluminum alloy guide groove structure are durable.The thin clamping arm design is convenient for wedging tightly stacked goods.
Options
* Custom opening ranges
* Custom pad size
* Various mounting classes available
* Load backrests

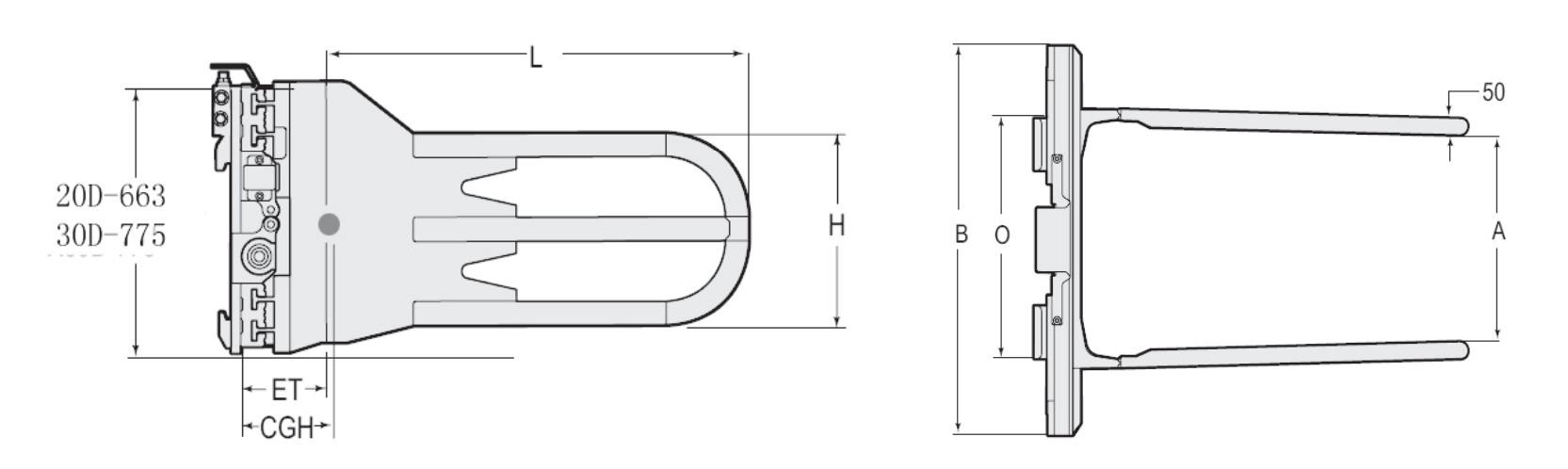

Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
A (mm) | Arm Height
H (mm) | Arm
Length
L (mm) | Frame
Width
B (mm) | Arm
Thickness
C (mm) | Overall
Height
(mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 2200@500 | FMS30D-007B | III | 790-2600 | 600 | 2500 | 1600 | 60 | 730 | 250 | 800 | 200 | 280 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 1600 | 60 | 730 | 250 | 680 | 200 | 300 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.Remark:
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Arm thickness “C” is the actual requested operation space.
Other size available on request.
Installation & Option
Hydraulic Flow & Pressure
| Model | Min.
Hydraulic
Flow(L/min) | Rec.
Hydraulic
Flow(L/min) | Max.
Hydraulic
Flow(L/min) | Min.
Hydraulic
Pressure(Bar) | Max.
Hydraulic
Pressure(Bar) |
| FMS20D | 15 | 25 | 25 | 35 | 160 |
| FMS30D | 15 | 40 | 40 | 35 | 160 |
Options:
* Left and right clip arm independent movement type.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Construction works
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
