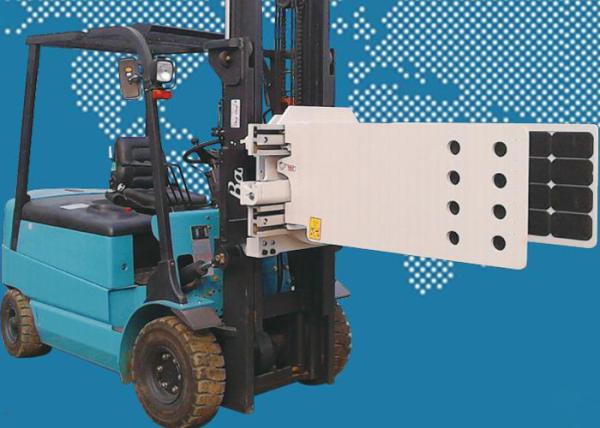

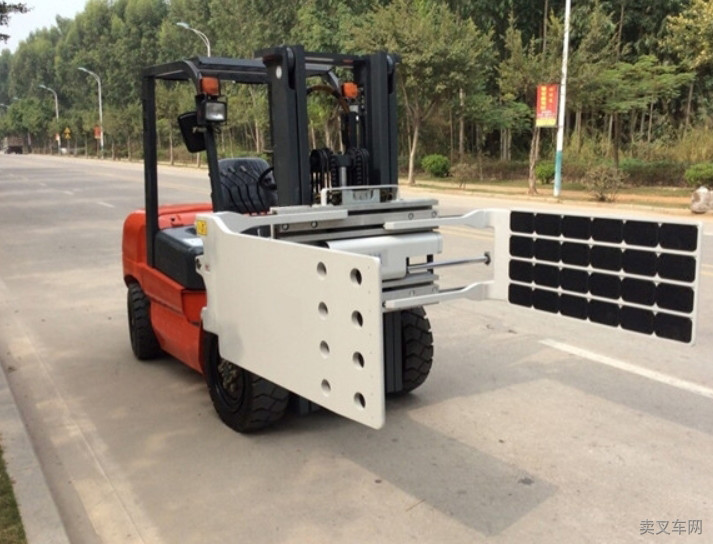

1400kg Tobacco Carton Clamps suitable for forklift
Functions & Applications
Tobacco carton clamps can efficiently and economically handler paper carton, wooden carton, metal carton and other scrap bales.
Features
* Proven durable T-beam arm aluminum frame construction.
* Superior arm-slide bearing for extended service life.
* Small rubber pads design, economically.
Options
* Custom opening ranges
* Custom arm size
* Various mounting classes available
* Load backrests

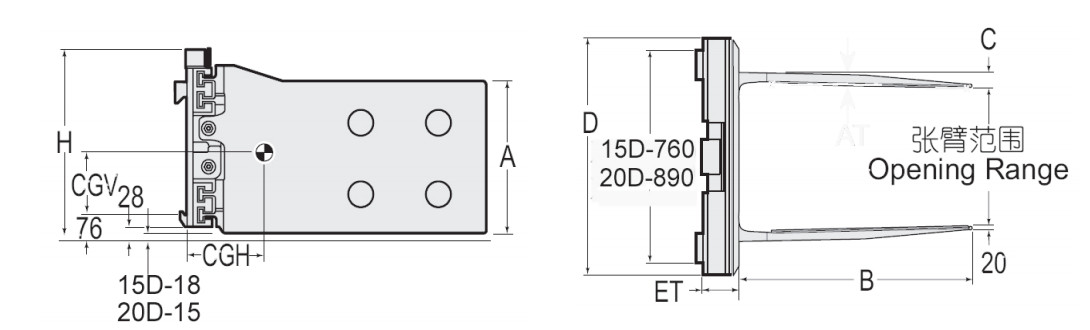

Parameter
Capacity@
Load Center
(Kg@mm) | Model No. | Mounting Class | Opening Range
(mm) | Arm Height
A (mm) | Arm
Length
B (mm) | Frame
Width
D (mm) | Arm
Thickness
C (mm) | Overall
Height
H (mm) | Vertical
Center of
Gravity
CGV(mm) | Weight
(kg) | Effective
Thickness
ET(mm) | Horizontal
Center of
Gravity
CGH(mm) |
| 1400@500 | MTS15D-001A | II | 460-1600 | 580 | 930 | 940 | 35 | 665 | 220 | 420 | 127 | 300 |
| 1400@500 | MTS15D-002A | II | 460-1600 | 580 | 1130 | 940 | 35 | 665 | 220 | 450 | 127 | 380 |
| 1400@500 | MTS15D-003A | II | 460-1600 | 580 | 1130 | 940 | 30 | 665 | 263 | 430 | 127 | 380 |
Remark:
1. Obtain the actual capacity of the forklift and attachments from the forklift manufacturer.
2. Two sets additional oil circuit required on forklift.
3. Opening range is the space between two arms tip.
4. Arm thickness “C” is the actual requested operation space.
Other size available on request.
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Manufacturing Plant, Food & Beverage factory
Can be customized according to size
Customized solutions:
Carton Clamp
Block Clamp
Bale Clamp
Roll Clamp
......
all kinds of attachment
